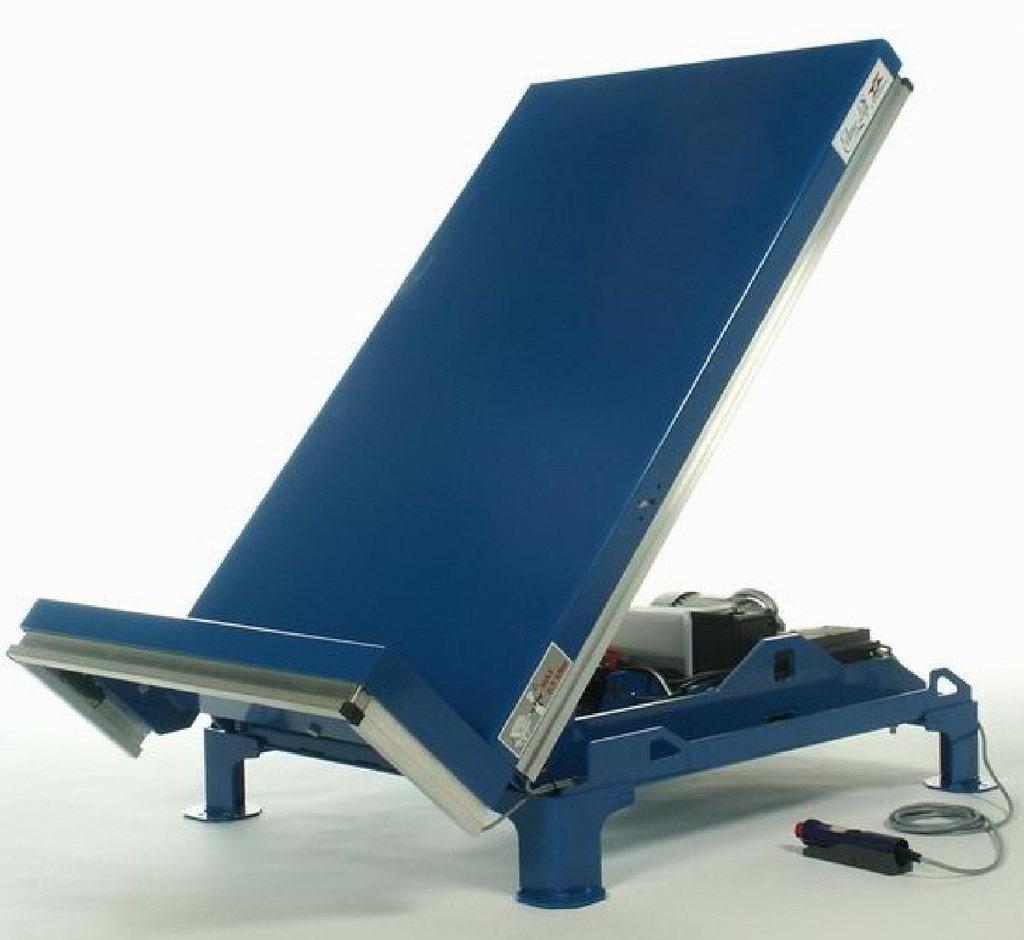

EDLF 65 Tilter 90°

Ribaltatore Edmolift. Quando è integrato con un piano di sollevamento, la parte idraulica è sincronizzata con il ribaltatore.

Cod.: 36085

Lowest Height mm
Tilt
Hydraulics
Tilt Side
Torque kNm
Power kW (S3)
Peso Kg
- 165
Installation

This combination does not exist.

Accedi per vedere i prezzi e acquistare

Documents

EDLF_65_Drawing

Category: Tilters, Tilters

Scarica scheda PDF

EDLF 65 - Edmolift tilter

Edmolift offers a wide range of tilters with many combinations and custom options. The tilter can be floor-mounted or integrated into the deck of a lift table, in which case tilter and lift table share the same hydraulic system. Floor-mounted tilters have a frame that houses the power unit.

The tilter improves workplace ergonomics by making the operator's movements easier. It is used for loading and unloading pallets, crates or containers in warehouses and production sites. Customisation is available on request.

Technical specifications

Platform length: 1300 mm
Platform width: 800 mm
Lowered height: 320 mm
Tilt: 90°
Hydraulic cylinders: double-acting
Tilting side: short side
Torque: 6.5 kNm
Power: 0.55 kW (S3)
Weight: 165 kg
Installation: floor-mounted

Product features

45° tilting with single-acting hydraulic cylinders
90° tilting with double-acting hydraulic cylinders
Torque from 6.5 to 13 kNm
Standard deck length 900, 1300 and 1700 mm
Deck width 600, 800 and 1000 mm
Anti-tip protection h = 230 mm included
Complies with European standard EN 1570-1, CE marked
24 V control voltage and controls with emergency stop
IP54 electrical system
Safety distance between all moving parts
Overload protection devices
Anti-crush bars on all 4 sides
Maintenance-free bearings
Prepared for PLC connection on request
User manual available in 20 languages

Specifications

Lift Table Lenght mm	1300
Lift Table Width mm	800
Lowest Height mm	320
Tilt	90°
Hydraulics	Doppio effetto
Tilt Side	Short Side
Torque kNm	6,5
Power kW (S3)	0,55
Peso Kg	165
Installation	Pavimento
