TSL 750 Column with Integrated Power Unit

Colonna di sollevamento Edmolift con centralina integrata.

Cod.: 613472

Lift Time sec.
Peso Kg
- 160
Power kW (S3)

This combination does not exist.

Accedi per vedere i prezzi e acquistare

Documents

Column_TSL_750_Drawing

Category: Pallet Lifters, Pallet Lifters

Scarica scheda PDF

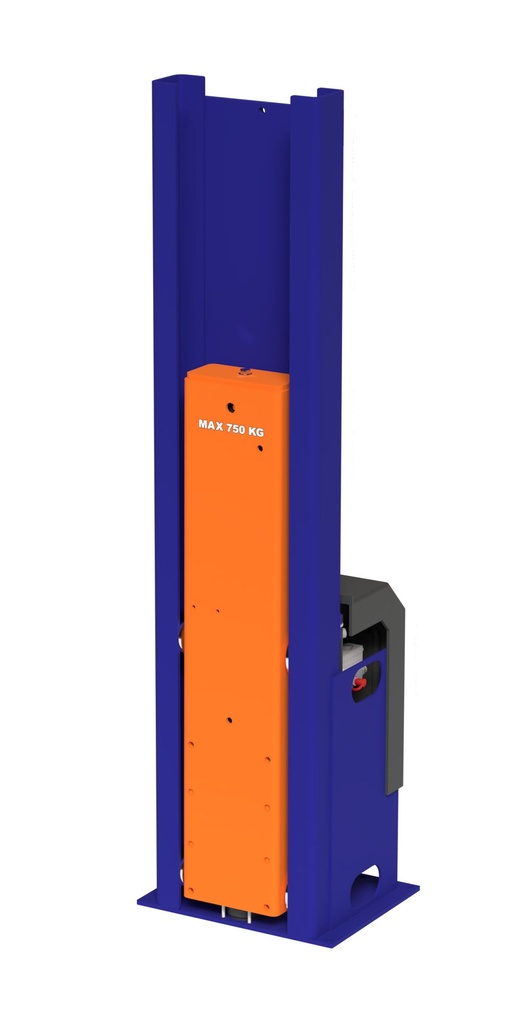

TSL 750 column with integrated power unit

Edmolift lifting column with integrated power unit, the same as on the TSL 750 pallet lifter. It is the basis for custom lifting solutions built around the customer's needs.

Technical specifications

Capacity: 750 kg
Lifting stroke: 900 mm
Width: 160 mm
Lifting time: 13 s
Weight: 160 kg
Power: 0.95 kW (S3)

Product features

Complies with European standard EN 1570-1, CE marked
24 V control voltage and controls with emergency stop
IP54 electrical system
Overload protection devices
Anti-crush bars on the sides of the forks

Specifications

Capacity Kg	750
Lift Stroke mm	900
Lift Table Width mm	160
Lift Time sec.	13
Peso Kg	160
Power kW (S3)	0,95
