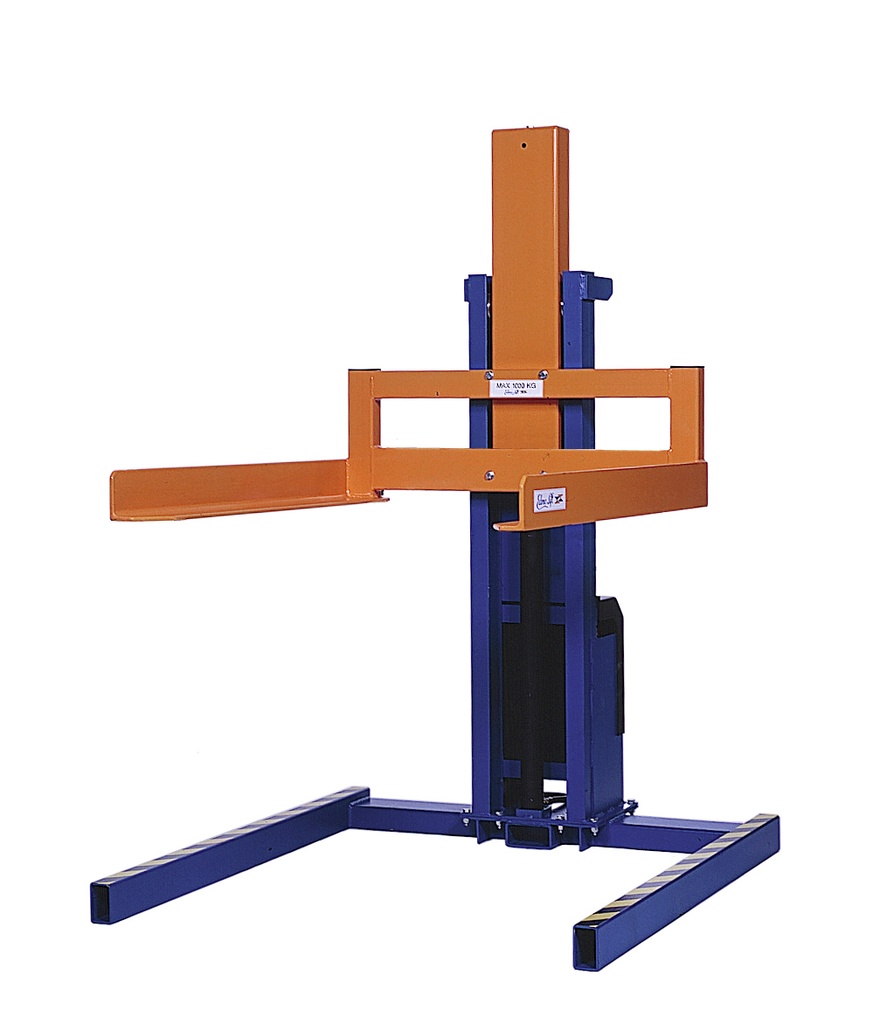

TSE 750 Pallet Lifter

The TSL has a minimum height of 70 mm (50 mm for the TSL 1503). The TSE goes down to 10 mm and has 1040 mm wide forks. The TSLN adds 40° tilt to the right and left. The 1503 versions carry up to 1500 kg.

The stated capacity applies with the load centre of gravity at 600 mm from the mast. If the load is unbalanced or longer, we check the case with Edmolift before the quote.

Yes: with the trolley accessory, on request, the lifter can be moved for cleaning, for a new layout or to use it in several areas.

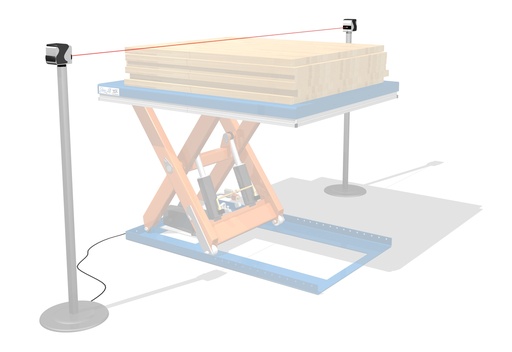

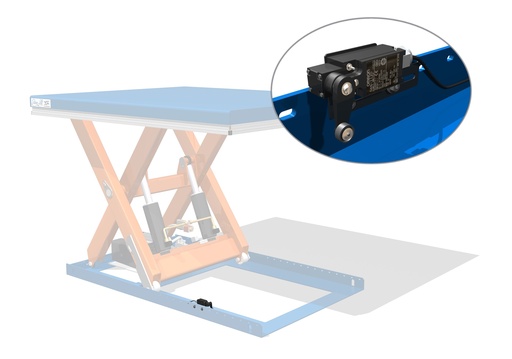

Yes, with the photocells for automatic levelling the lifter rises and lowers by itself, without commands from the operator. With the upper and lower limit switch, instead, it always stops at the same heights.

By lifting and tilting the load towards the operator: the Armlift lifts and tilts from +5° to −40°, the TSLN pallet lifter tilts the pallet by 40° to the right and left, and the tilters reach 45° or 90°. If the pallet is emptied or filled layer by layer, the PL 2002 pallet leveller keeps it at the right height at all times, without electricity.

The pallet lifter is loaded directly with a manual pallet truck and raises the pallet up to 970 mm, with free access on three sides; the TSE goes down to 10 mm. Among the Armlifts, the ALT 1500U, ALT 1500UE and ALT 1500GB have a U-shaped platform only 6 mm high and pick up pallets and trolleys straight from the floor.

With the ARZ and LTT 750 lifting arms: they take the trolley from the tugger train, lift it and tilt it towards the operator. The ARZ adjusts height and tilt from +5° to −40°; the LTT 750 lifts vertically and takes up the least space.

Yes: Armlifts and pallet lifters can be prepared on request for connection to a PLC. They have 24 V controls with emergency stop and an IP54 electrical system.

About 4 times a year or every 1000 cycles, whichever comes first: hydraulic oil (ISO 32) for leaks and level, hoses and cables, emergency stops and safety bars, by qualified staff with original spare parts. The user manual, with the wiring diagrams, is in the “Documents” section of the product page.
